Edon LV250s welding machine

Original price was: KSh 12,000.Current price is: KSh 9,550.

Key Specifications

Feature Typical Specification Significance
Technology IGBT Inverter Makes the machine extremely compact, lightweight ($approx 4 text{ kg}$), and highly energy efficient.
Welding Process MMA / ARC (Stick) Designed for welding with coated electrodes (rods) on various metals.
Input Voltage $mathbf{220 text{ V} / 240 text{ V}}$ Single Phase Operates on standard household or workshop power.
Usable Output Current $20 text{ A} text{ to } 160 text{ A}$ (Most common rated range) Although the model name suggests $250 text{ A}$, the highest reliable and continuously rated output is typically $140 text{ A}$ to $160 text{ A}$.
Electrode Size $1.6 text{ mm}$ to $4.0 text{ mm}$ Capable of running the most common rods, including $2.5 text{ mm}$ and $3.2 text{ mm}$ for general fabrication.
Duty Cycle $60%$ at $160 text{ A}$ (Common) Allows for 6 minutes of continuous welding at $160 text{ A}$ within any 10-minute period before a cool-down is required.
No-Load Voltage (OCV) $mathbf{60 text{ V} text{ to } 65 text{ V}}$ A higher OCV helps with easier arc ignition (striking the arc).
Description

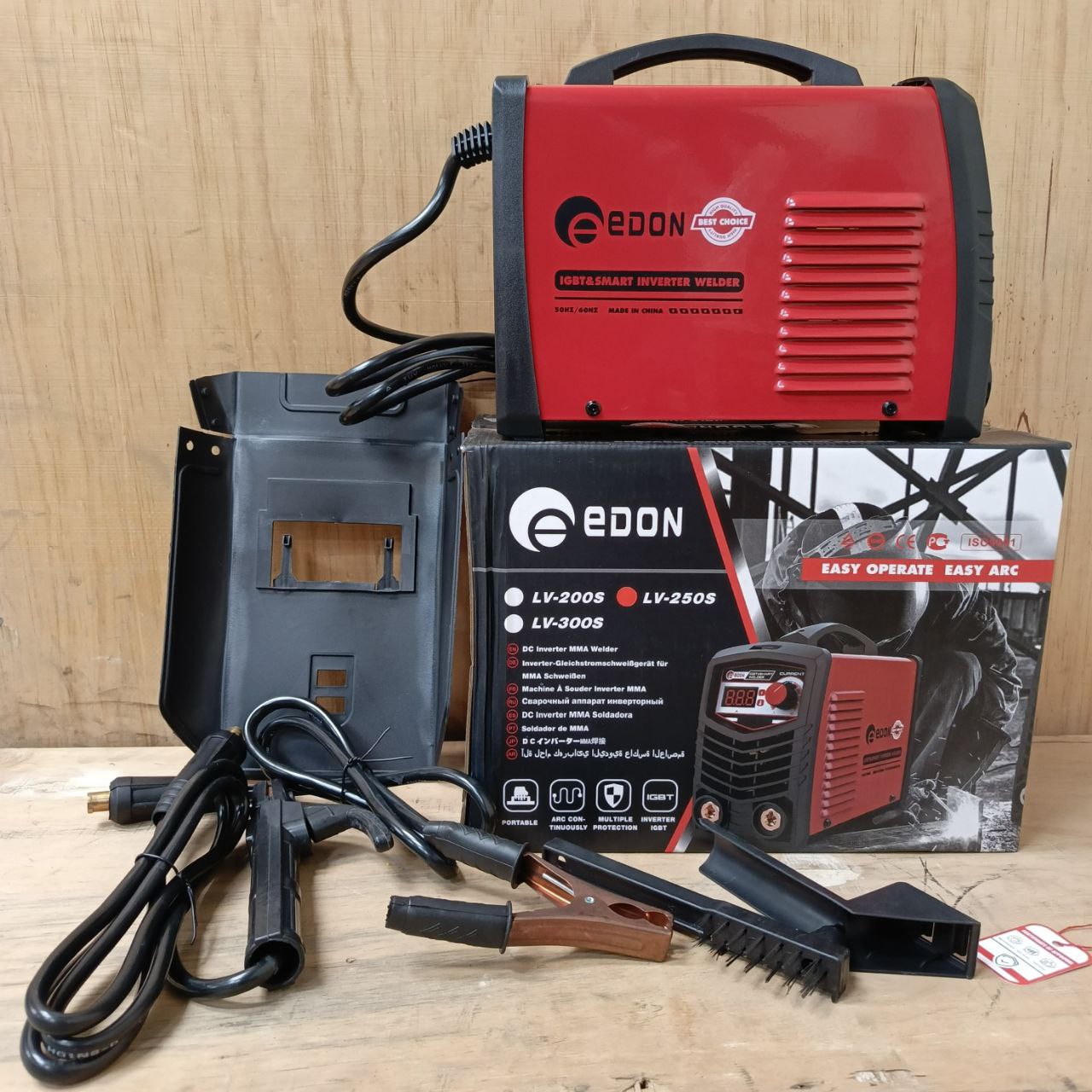

The Edon LV250S Welding Machine is a popular, compact, and portable DC Inverter Stick Welder (MMA/ARC), primarily aimed at the DIY and light commercial markets.1



The “LV-250S” designation suggests a maximum output of $250 text{ Amps}$, but it is important to note that the reliably rated output is typically lower for continuous professional use on a standard single-phase power supply.
